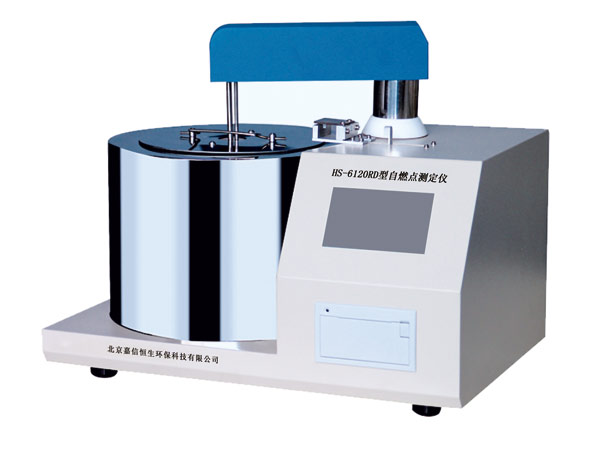

HS-6120RD type self-ignition point tester

This instrument implements the DL/T706-1999 standard design and is used to determine the self-ignition point of fuel oil used in power plants.

Main feature

1, liquid crystal display, menu click input command, high temperature accuracy, stable and reliable.

2, can enter the network communication, accept the laboratory office computer instructions automatically run, and feedback test results, the summary report is automatically generated by the software provided (optional function).

3. Printing function (optional function).

The main technical parameters

1, test range: 200 ~ 800 ° C

2, control accuracy: ± 1 ° C

3. Sensor type: K (nickel-chromium-nickel aluminum) type thermocouple

4. Power source: AC220±22V, 50±1Hz

5, power: 1500W

6. Dimensions: 490×330×410mm (H×W×D)

7, weight: 8Kg
