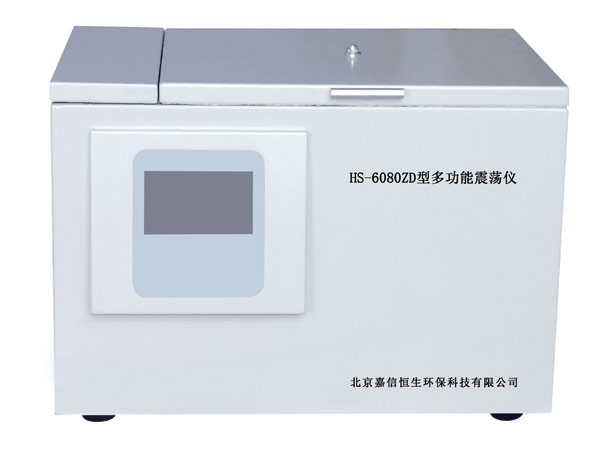

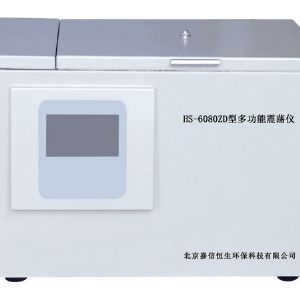

HS-6080ZD Multi-function Oscillator

The instrument is designed according to GB/T17625 and GB/T7601-87 standard, and is mainly used for oscillating degassing of oil sample dissolved gas gas chromatography and colorimetric method, and can also be used as other constant temperature timing oscillation.

Main feature

1. The instrument adopts LCD large screen full Chinese display, and has complete information prompts such as instrument status and operation prompts.

2. Using high-performance single-chip microcomputer as the microprocessor, PID intelligent control of temperature, fast temperature control, low power consumption, accurate and reliable.

3, there are a variety of mode choices, making the experiment more convenient and fast. The heater is isolated from the greenhouse to avoid heat radiation.

4. 6 beakers can be placed in the greenhouse, or 8 syringes can be placed, which can oscillate 8 samples at the same time, which improves the working efficiency.

5. The inner wall of the constant temperature chamber is made of mirror stainless steel plate, which is clean and bright.

6. The internal volume is large, the noise is small, and the temperature field is evenly distributed.

The main technical parameters

1, temperature control range: room temperature ~ 120 ° C

2, temperature control accuracy: room temperature ~ 60 ° C ± 0.2 ° C

60～120°C ±0.5°C

3. Oscillation frequency: 275±5 times/min

4, shock amplitude: 35mm

5, time control: adjustable

6, power: AC220 ± 22V, 50 ± 1Hz

7, power: 800W

8. Dimensions: 500×460×420mm (H×W×D)

9, weight: 8Kg
