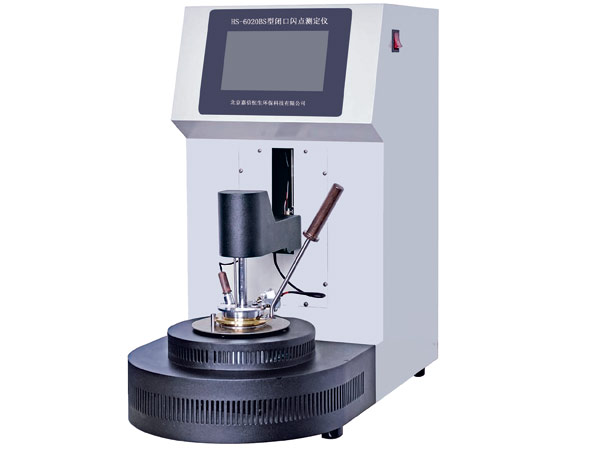

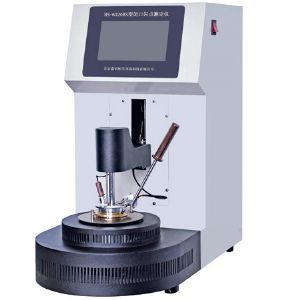

HS-6020BS closed flash point tester

The instrument is designed according to GB261  standards and is mainly used to determine the flash point temperature value. The instrument uses a 32-bit embedded microprocessor as the main control core, embedded in the mini operating system. It realizes the automation of the work process and has the characteristics of high measurement accuracy, good repeatability, stable and reliable performance, simple operation, etc. It is an ideal instrument for the flash point test of petroleum, chemical, electric power, commodity inspection, scientific research and other departments.

Main feature

1, liquid crystal display, menu click input command, can preset flash point, oil sample label, atmospheric pressure and other parameters.

2, single cup detection, power on self-test, key operation Chinese characters prompt.

3, no power down clock, automatically generate test time.

4. The measurement accuracy is high, the sensor linearity and thermal inertia are automatically corrected, and the atmospheric pressure correction value is automatically calculated.

5, open the cover, stirring, electronic ignition, detection, communication and other instruments automatically completed.

6, using a metal bath cover heating, so that the oil is evenly heated, the equilibrium temperature is accurate.

The main technical parameters

1, the range: 0 ~ 200 ° C

2, opening time: 1.5s

3. Resolution: 0.1 °C

4, accuracy:

Flash point value <104 °C ± 1 ° C

±1°C when the flash point value is ≥104°C

5, repeatability: ≤ 2 ° C

6, reproducibility: ≤ 4 ° C

7, power: AC220 ± 22V, 50 ± 1Hz

8, power: 200W

9, external dimensions: 380 × 360 × 320mm (H × W × D)

10, weight: 8Kg

Selection guide

1. Optional air source or non-air source ignition mode instrument. The gas source instrument adopts the original national standard and uses liquefied gas as the gas source; the non-gas source instrument uses rare metal (platinum wire) as the ignition device, high-voltage electronic ignition, and the measurement result is stable and reliable. Because there is no air source, it is more convenient for users to use.

2, optional double cup closed flash point tester.
