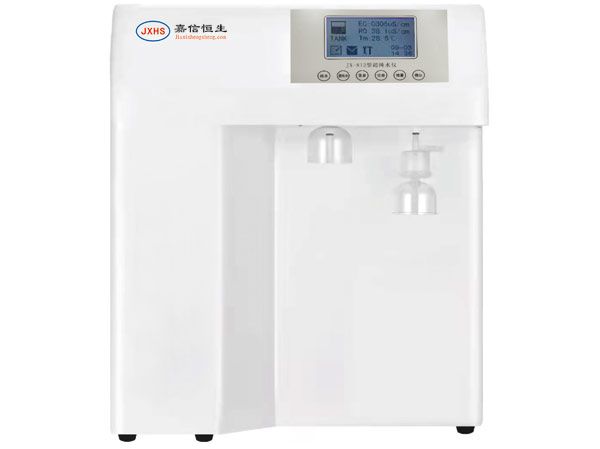

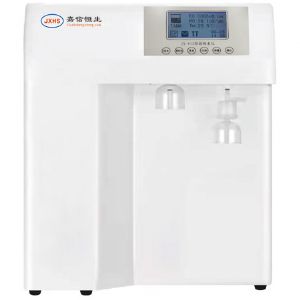

JX-812 ultra pure water meter

Application field

Widely used in electric power, chemical, metallurgy, water treatment, pharmaceutical, industrial wastewater, biochemical water and other industries.

Main feature

1. Consumables adopt easy-sliding structure, all consumables are clear at a glance, convenient for maintenance and replacement.

2. The liquid road adopts a new scientific structure design to ensure the water quality and greatly extend the service life of the consumables.

3, fully automatic water, one machine dual-use function, can produce pure water and ultra-pure water according to different needs.

4, microcomputer automatic control, touch button touch control system, user-friendly operation.

5, easy to maintain, easy to replace the filter.

6. Water quality online monitoring system, the water quality of the effluent is clear at a glance, and the conductivity (resistivity) and temperature of the inlet and outlet water are displayed at the same time.

7、 boot automatic cleaning function to avoid pollution.

8、 Adopt ABS casing to avoid the distress caused by rusting and aging of traditional casing.

9. Imported materials are used for important components and consumables.

10, the whole machine warranty for one year, lifetime maintenance.

11. Compared with other company instruments, the company's products have saved a lot of maintenance costs while maintaining stable performance.

12. The effluent standard complies with the GB6682-92 national standard.

The main technical parameters

1. Specifications: 20L, 30L, 40L

2. Water output: 20L/h, 30L/h, 40L/h

3. Conductivity: ≤0.055μS/cm

4. Resistivity: ≥18.2MΩ/cm

5, particles: (0.22μm terminal filter) <1/ml

6, water source requirements: <350μS / cm

7, TOC: 2 ~ 5ppb

8. Cation (ppb): Fe<0.005, Cu<0.005, Al<0.005, Si<0.05

Ni<0.005, Zn<0.02, Cr<0.005, Na<0.01, K<0.02

9. Anion (ppb): Cl-<0.01, NO2-<0.02, NO3-<0.02, SO42-<0.01

10. Power source: AC220±22V, 50Hz±1Hz

11, power: 200W

12, external dimensions: 400 × 480 × 400mm (H × W × D)

13, weight: 20kg

Selection guide

1. Optional instruments with water output of 20L/h, 30L/h, and 40L/h.

2. Tap water, demineralized water and distilled water can be selected as the influent water source.
