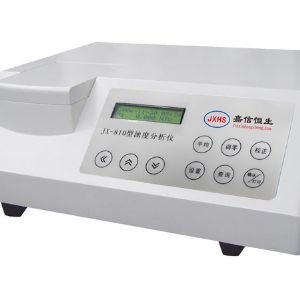

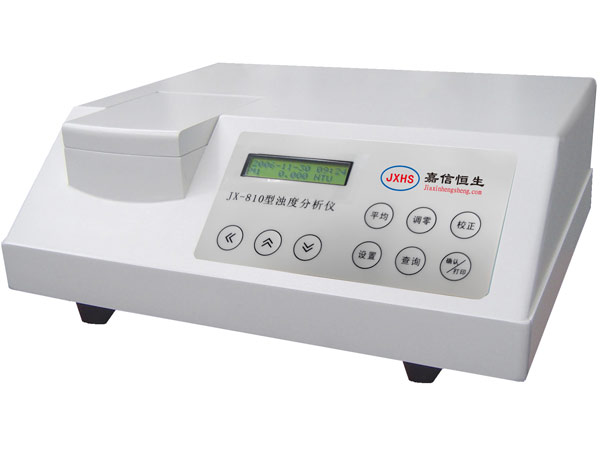

JX-810 Turbidity Analyzer

Main feature

The photoelectric turbidity analyzer is used to measure the degree of scattering of light generated by insoluble particulate matter suspended in water or a transparent liquid, and to quantitatively characterize the content of these suspended particulate matter.

Main feature

1. Elegant and elegant appearance, ideal operation and display angle, suitable for modern laboratory environment.

2, microcomputer data processing, touch keyboard. Rs232 data output communication interface.

3, using LCD backlight LCD display turbidity, easy to operate, with a high cost performance.

4. Unique positioning structure and high-precision optical path system ensure the correctness and repeatability of measured values. The instrument can work stably for a long time.

5, a wide measurement range, accurate display indication, can meet special turbidity analysis, low turbidity analysis, unstable turbidity analysis and suitable for use in various industries.

6. with print function (optional), data save review function (30 times), date and time display function.

7. Tested and certified by the national measurement authority.

The main technical parameters

1, the principle of measurement: 90 ° scattered light

2. Measurement range: 0~199.9NTU

3. Resolution: 0.1NTU, 0.01NTU

4. Accuracy: ±2.0% F.S, ±2.5% F.S

5. Stability: ±1%F.S/4h

6, repeatability: no more than 1%

7, power: AC220V ± 22, 50 ± 1HZ

8, power: 20W

9. Dimensions: 380×180×260mm (H×W×D)

10, weight: 4kg

Selection guide

1. Optional instruments with different resolutions.

2. Optional instruments with different linearity errors.
